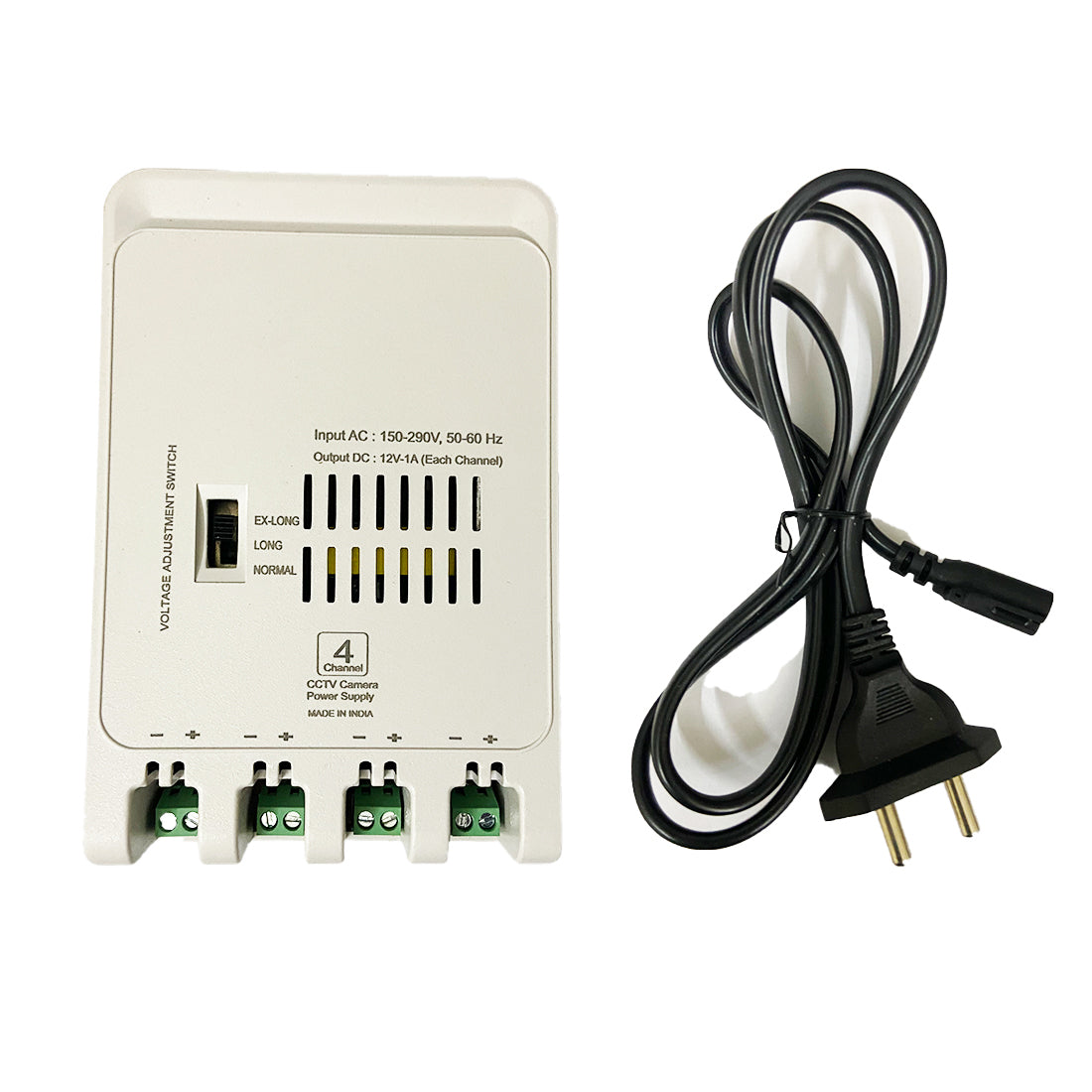

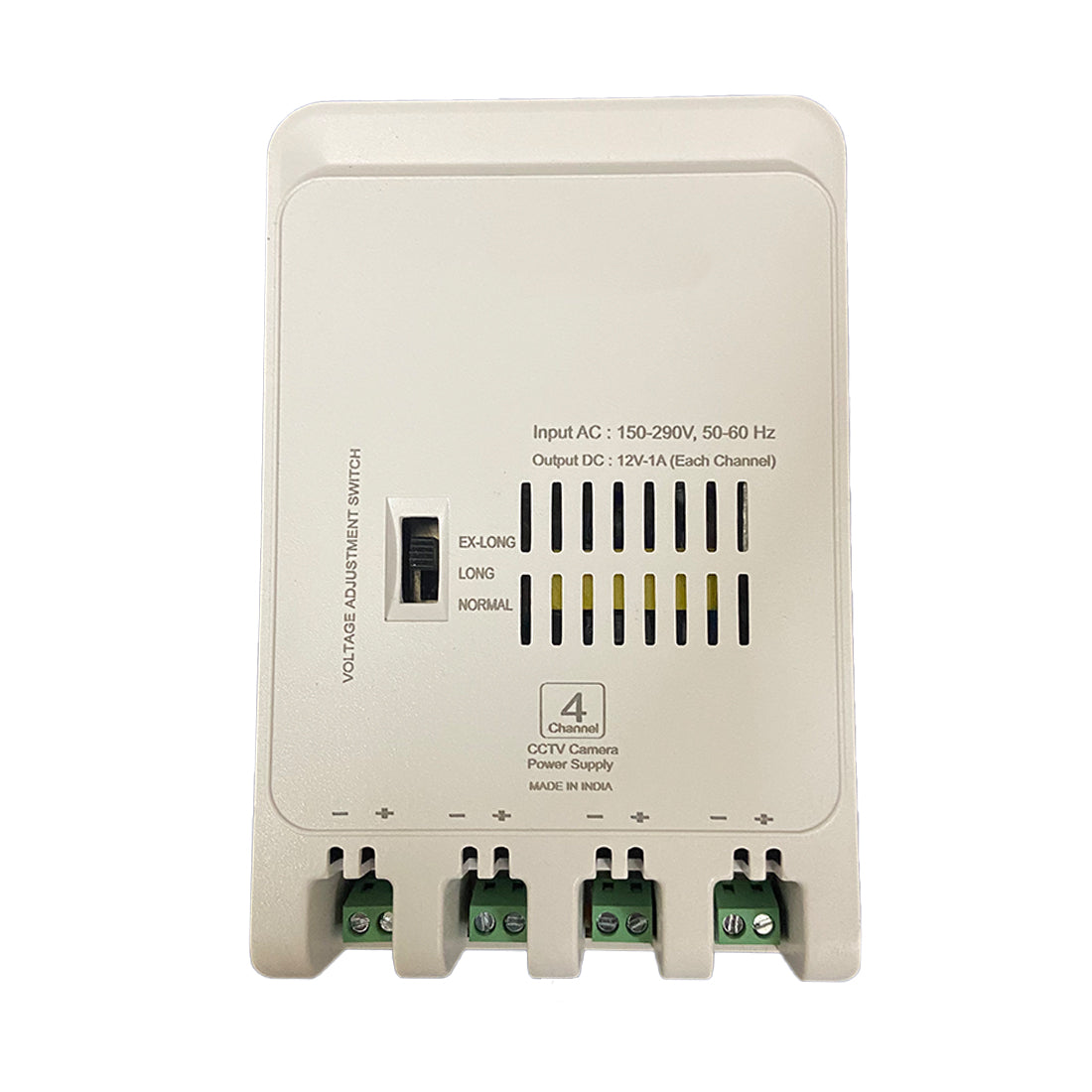

Multybyte 4 Channel CCTV Camera Power Supply 12V 5A SMPS with Voltage Booster | Surge Protection Power Adapter for Bullet & Dome CCTV Cameras

A CCTV security system is only as reliable as its power supply. Cameras that receive unstable, noisy, or insufficient power produce poor-quality images, restart unexpectedly, or fail entirely — defeating the entire purpose of the surveillance installation. The Multybyte 4 Channel CCTV SMPS Power Supply 12V 5A is designed specifically for multi-camera surveillance environments, providing clean, regulated, and protected 12V DC power to up to four cameras simultaneously from a single compact unit. For CCTV installers and security-conscious property owners across India, this power supply eliminates the clutter and inefficiency of using individual camera adapters while delivering a professionally managed power distribution solution.

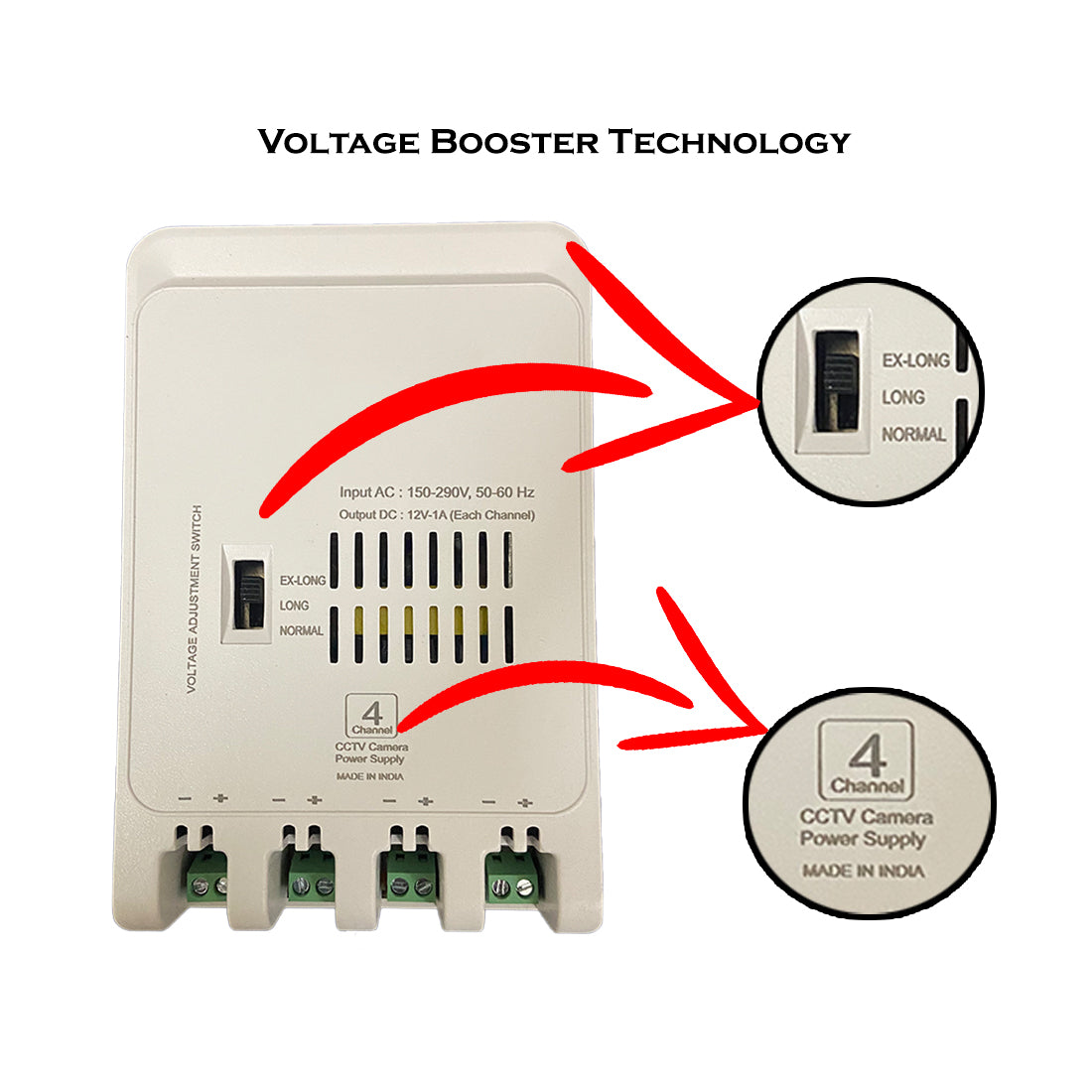

The unit's built-in voltage booster technology addresses one of the most common challenges in real-world CCTV installations: voltage drop over cable length. When CCTV cameras are mounted at a distance from the power source — such as at building perimeters, parking lots, or multi-floor installations — resistance in the coaxial cable causes the received voltage to drop below the camera's operational threshold. This results in dim images, camera restarts, or complete power failure at the camera end. The Multybyte SMPS's voltage booster automatically compensates for this drop, ensuring cameras at the far end of cable runs receive full operational voltage for clear, stable video.

India's power supply infrastructure presents a unique challenge for electronics: voltage fluctuations between 150V and 285V are common, particularly in smaller towns, industrial areas, and older residential buildings. The Multybyte SMPS is rated for this full 150V to 285V AC input range, meaning it continues to deliver stable 12V DC output regardless of whether the incoming mains voltage spikes to 285V during peak hours or drops to 150V during low-voltage conditions. This wide input tolerance is a critical specification for any CCTV power supply deployed in Indian conditions.

The power supply incorporates a 5-layer protection system that comprehensively safeguards both the connected cameras and the SMPS unit itself. Surge protection handles sudden voltage spikes from lightning or grid switching events. Short circuit protection automatically cuts power if a camera wire shorts, preventing cascading damage. Overload protection activates if the connected load exceeds 5A. Over-voltage and over-temperature cutoffs provide the final lines of defence against electrical fault conditions. Together, these protections make the unit suitable for long-term 24/7 deployment without manual oversight.

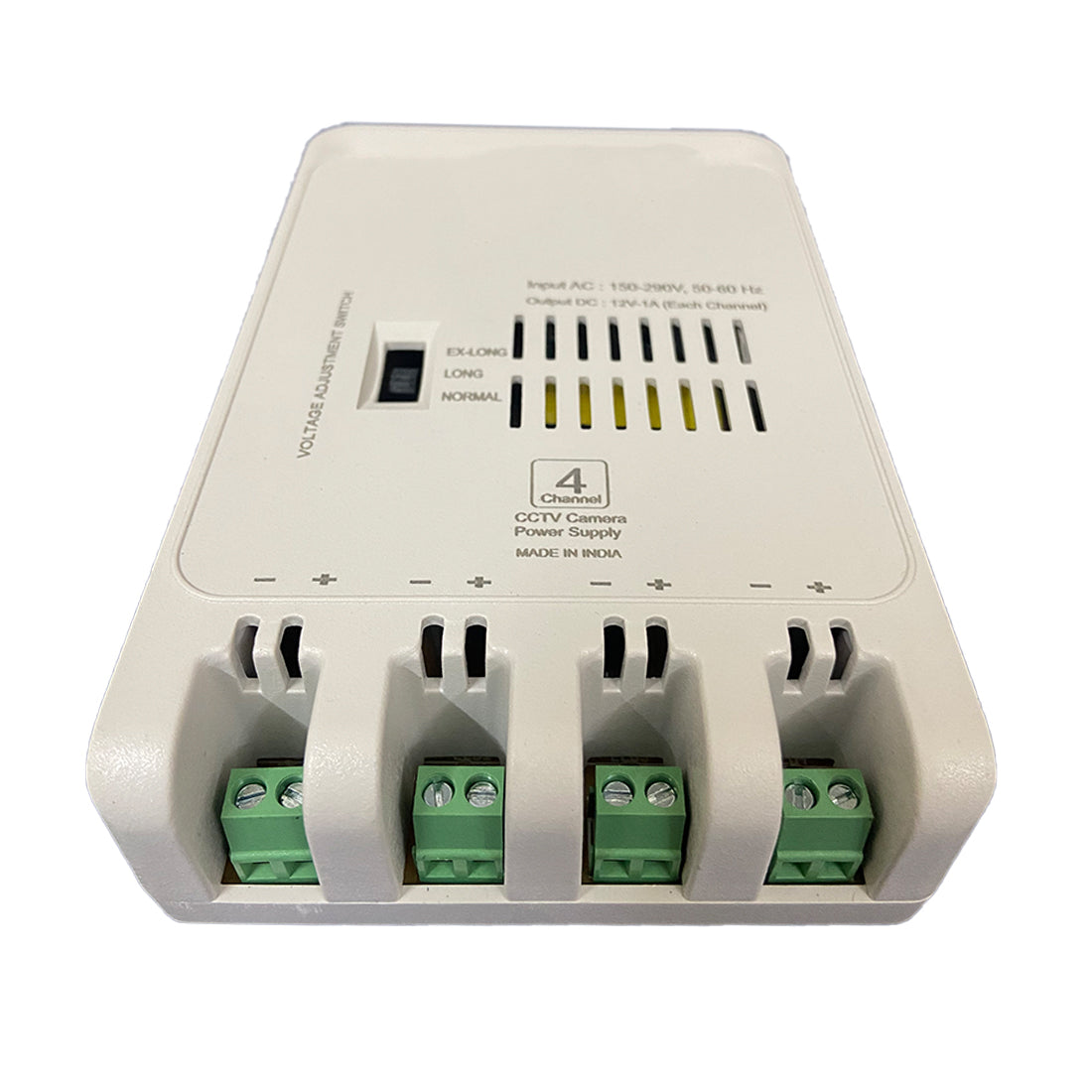

Each of the four output channels has its own individual LED indicator — a small but extremely practical feature for CCTV installers. During installation and troubleshooting, being able to see at a glance which channels have active power (green LED lit) versus which channels may have a fault or disconnected cable saves significant diagnostic time. The compact ABS enclosure is designed for installation inside DVR cabinets, security rack boxes, or ceiling-mounted junction boxes, keeping the power supply safely enclosed and cables neatly managed. Available at WeKart Online Store with free delivery, GST invoice, Cash on Delivery, and 1-Year Warranty.
