Hikvision 4 Channel DVR 1080P Lite H.265+ CCTV DVR DS-7104HGHI-K1 Without Hard Drive | Supports HDTVI AHD CVI CVBS IP Cameras | WeKart Online Store

Hikvision 4 Channel DVR 1080P Lite H.265+ CCTV DVR DS-7104HGHI-K1 Without Hard Drive | Supports HDTVI AHD CVI CVBS IP Cameras | WeKart Online Store

Regular price Rs. 2,899.00 INR
Regular price Rs. 7,999.00 INR Sale price Rs. 2,899.00 INR
Sale Sold out
Quantity

In stock

🚚

Shipping & Delivery

  • Order Processing & Shipping: 24–48 hours.
  • Delivery Time: 1–7 business days (depending on location)
🛡️

Return, Replacement & Warranty

Every Product Is Backed By 1 To 2 Year Warranty

💬

Contact

📧 Email — support@wekartonline.com

📦 Orders — orders@wekartonline.com

🛡️ Warranty — warranty@wekartonline.com

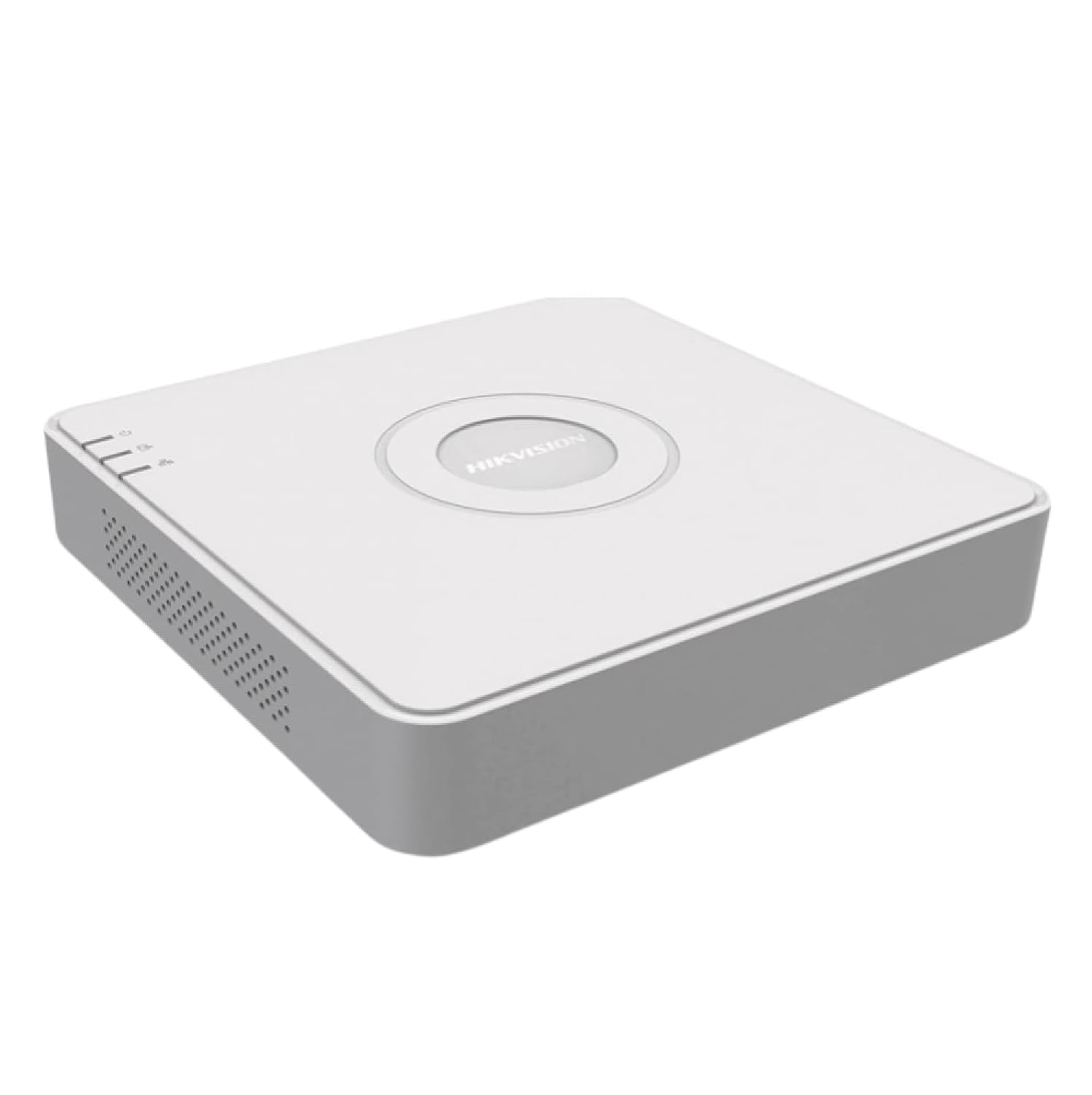

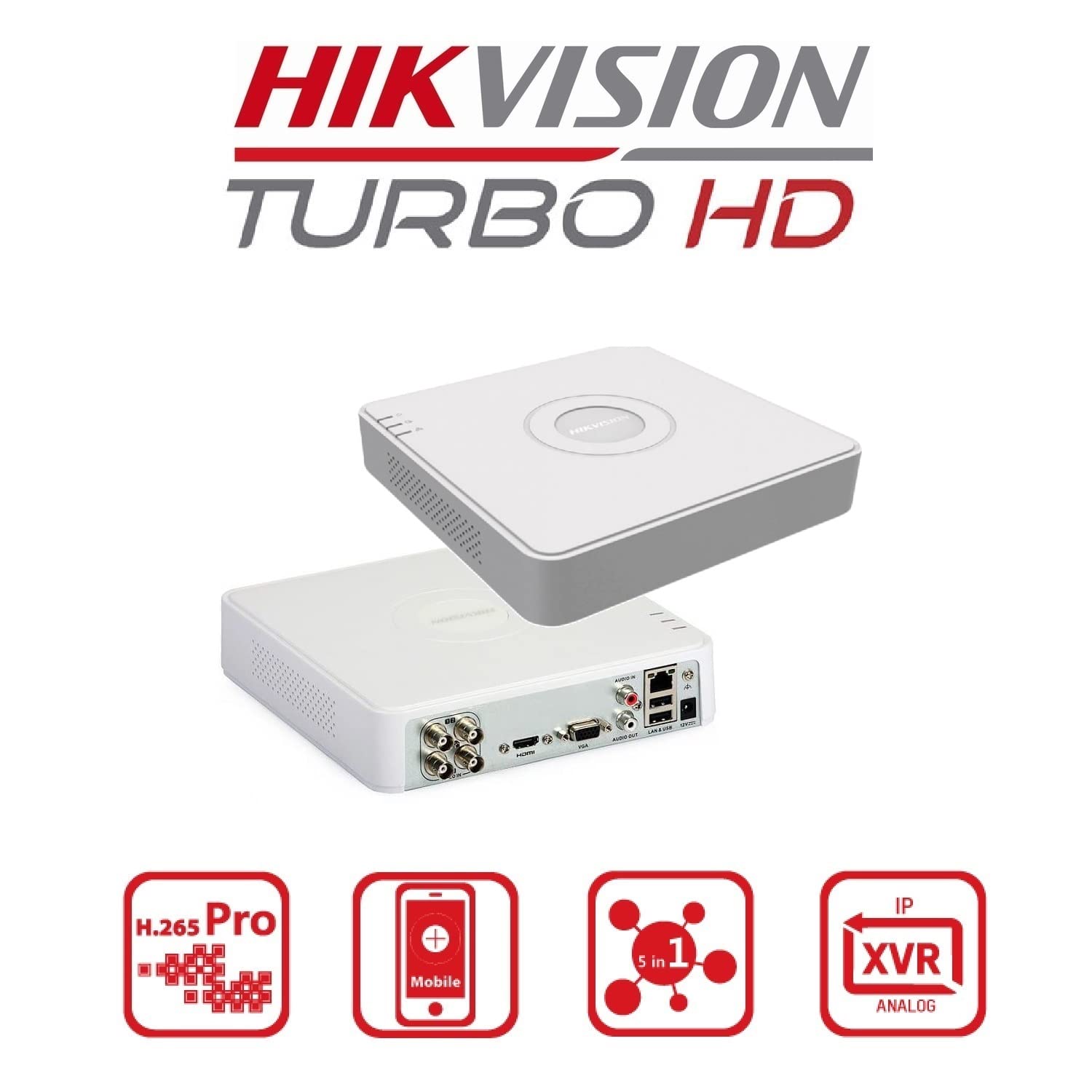

The Hikvision DS-7104HGHI-K1 is a professional-grade 4-channel CCTV DVR trusted by security installers and property owners across India. Featuring 1080P Lite HD recording, H.265+ compression, and Smart Motion Detection 2.0, it stores more footage with less hard drive space and intelligently filters out false alarms. Compatible with HDTVI, AHD, CVI, CVBS, and IP cameras, this hybrid DVR works with virtually every CCTV camera on the Indian market — available at WeKart Online Store with free delivery, GST invoice, and Cash on Delivery.
🚚 Free Delivery 💵 Cash on Delivery 🧾 GST Invoice ✅ 100% Genuine 🏭 Brand: Hikvision 📱 Remote Viewing
Model: DS-7104HGHI-K1
4 Channel · 1080P Lite · H.265+
Hybrid DVR · Smart Motion 2.0 · Hik-Connect Remote View
Supports HDTVI · AHD · CVI · CVBS · IP cameras
📹 4 Channels 💾 Up to 4TB HDD 🔴 H.265+ Codec 📡 Hik-Connect 🖥️ HDMI + VGA
Supported Camera Technologies
📹
HDTVI
Hikvision native
📷
AHD
Analog HD
🎥
HDCVI
Dahua format
📡
CVBS
Legacy analog
🌐
IP Camera
Up to 2MP / 5ch
Key Features
📹
4-Channel Hybrid DVRConnect up to 4 analog cameras (HDTVI/AHD/CVI/CVBS) plus up to 5 additional IP cameras simultaneously.
🎞️
1080P Lite HD RecordingCaptures clear high-definition footage at smooth 25/30fps for reliable identification of people and vehicles.
🗜️
H.265+ Smart CompressionIndustry-leading codec reduces storage requirements by up to 75% compared to H.264 — more footage, less drive space.
🧠
Motion Detection 2.0Deep learning AI distinguishes humans and vehicles from leaves, lighting changes, and animal movement — virtually eliminating false alerts.
📱
Remote View via Hik-ConnectWatch live cameras and recorded footage from your smartphone or PC — from anywhere in the world, 24/7.
🖥️
HDMI + VGA Dual OutputConnect to any monitor or TV simultaneously — sharp full HD display for live surveillance monitoring.
💾
Up to 4TB Storage SupportSingle SATA bay supports up to 4TB hard drive — weeks of continuous recording depending on settings.
🔌
Reliable Ethernet & USB10/100 Mbps LAN port for stable remote access; 2× USB 2.0 for mouse operation and USB backup export.

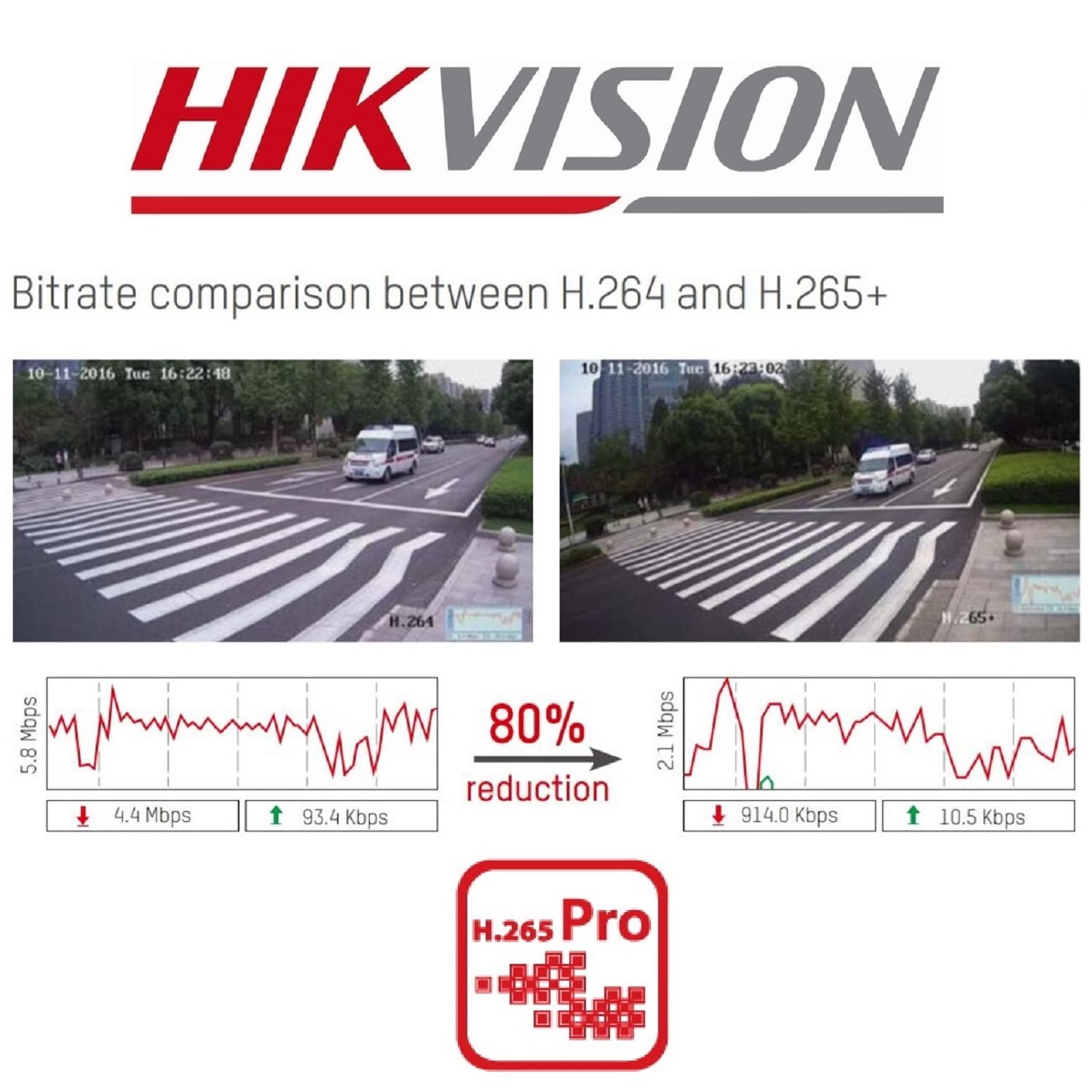

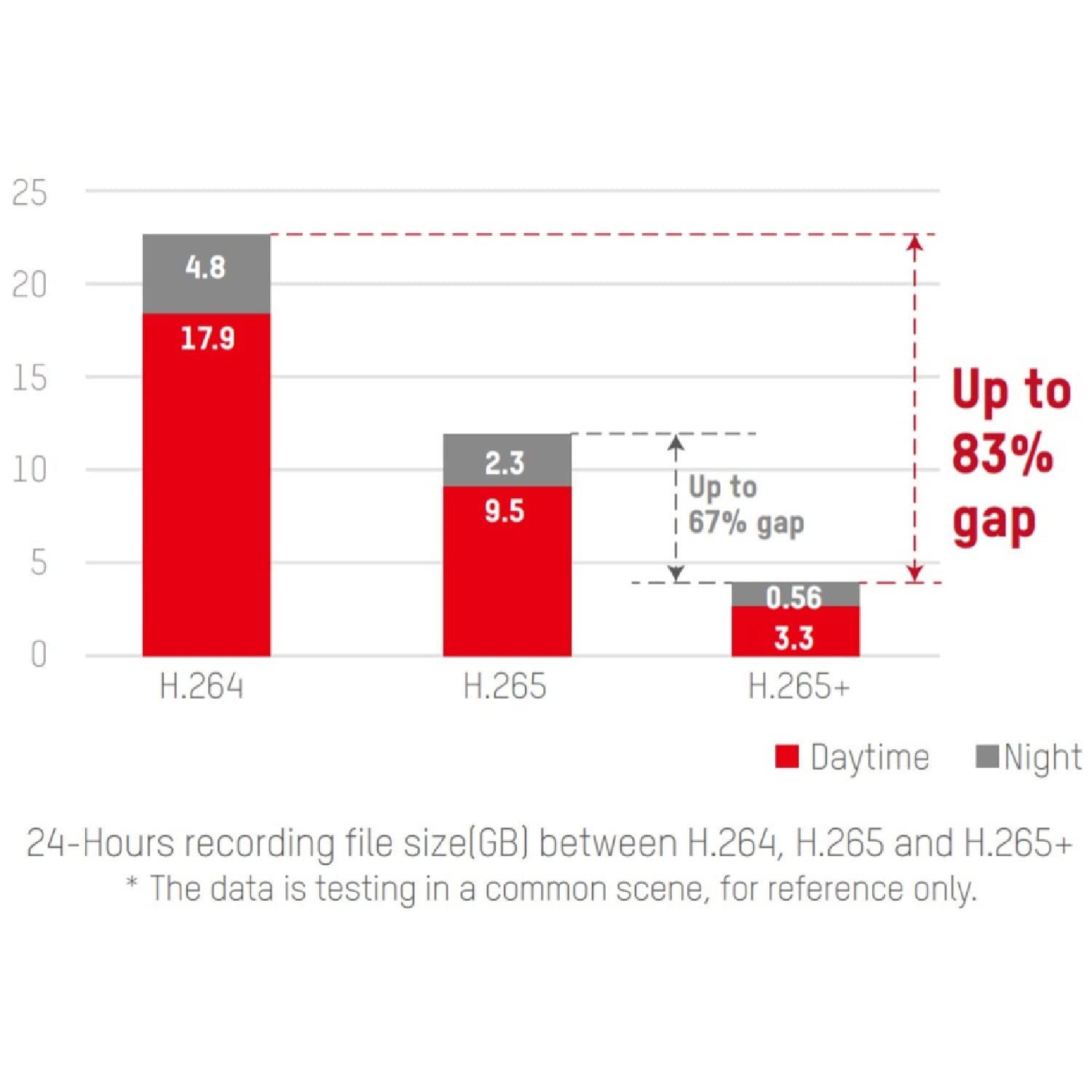

H.265+ Storage Savings
100%
H.264
Older standard — full storage consumption
~50%
H.265
Standard compression — half the space
~25%
H.265+ (This DVR)
Smart compression — maximum efficiency
UP TO 75% LESS STORAGE ✓
Ports & Connectivity
🖥️ HDMI Output 📺 VGA Output 🌐 RJ45 Ethernet 🖱️ USB × 2 💾 SATA (1×HDD) 🔋 12V DC Power
About This Product

The Hikvision DS-7104HGHI-K1 is one of the most widely installed 4-channel DVRs in India — and for good reason. Hikvision is the world's largest CCTV manufacturer, and this model brings its enterprise-grade surveillance technology to small homes, retail shops, offices, and apartment buildings at an accessible price point. Whether you're setting up a new 4-camera security system from scratch or upgrading an older recorder to gain modern features like H.265+ compression and deep learning motion detection, this DVR delivers reliable performance day in, day out.

The standout technical advantage of this DVR is H.265+ video compression. To understand why this matters: a 4-camera system recording 24/7 generates an enormous amount of data. With older H.264 compression, a 1TB hard drive might store around 10–14 days of footage at 1080P Lite. With H.265+, the same 1TB stores up to 30–45 days of equivalent footage — without any visible reduction in video quality. This is especially valuable in India, where users often want weeks of recording history without the cost of multiple large hard drives. A single 2TB HDD in this DVR can provide over a month of continuous 4-camera recording.

The hybrid architecture of this DVR is another practical advantage for Indian installers and users. Unlike older DVRs that only accept one specific camera type, the DS-7104HGHI-K1 simultaneously supports HDTVI, AHD, HDCVI, CVBS analog, and IP cameras. This means you can use existing cameras from any brand in a renovation or upgrade, mix camera types within the same system, and add IP cameras later to expand coverage without replacing the DVR. It's a genuinely future-proof investment for anyone building a serious surveillance system.

Smart Motion Detection 2.0 uses deep learning algorithms trained on millions of real-world surveillance scenarios to distinguish between human and vehicle movement versus environmental noise like tree branches, insects, passing car headlights, or rain. For property owners who have experienced alert fatigue from traditional motion detection systems that trigger on everything, this feature is transformative — your phone only buzzes when an actual person or vehicle enters a monitored zone. Quick event search during playback also means you can find relevant footage in minutes rather than hours.

Remote monitoring via the Hik-Connect app is seamless. Once configured through your network, you can view live footage from all four cameras in real time, review recorded clips, and receive push notifications for motion events — all from a smartphone or PC, anywhere with an internet connection. For shop owners, landlords, warehouse managers, and homeowners travelling frequently, this real-time visibility is exactly what modern surveillance should offer. Available at WeKart Online Store with GST invoice, free delivery across India, and Cash on Delivery for complete buying convenience.

Ideal Use Cases
🏠 Home SecurityMonitor entry points, garage, and perimeter with 4 cameras — view live from your phone at any time.
🛒 Retail ShopsDeter shoplifting, monitor billing counters and entrances — review footage quickly after any incident.
🏢 Office & WorkspaceMonitor reception, server rooms, parking, and common areas for complete workplace security.
🏗️ WarehouseProtect inventory and equipment across a large floor area with reliable 24/7 recording.
🏫 InstitutionsSchool gates, corridors, and campuses — long-term recording and intelligent motion alerts.
🏘️ ApartmentsMonitor lobby, lift area, and parking lot — affordable 4-camera system for housing societies.
Technical Compatibility Overview
Category Supported Standards & Devices
Analog Camera Inputs 4 × BNC — HDTVI (1080P Lite, 720P), AHD (1080P, 720P), HDCVI (1080P, 720P), CVBS (PAL/NTSC)
IP Camera Inputs Up to 5 × IP cameras @ 2MP (replaces analog channels 4+1)
Video Compression H.265+, H.265, H.264+, H.264
Recording Resolution 1080P Lite (25fps), 720P (25fps), 960H, D1, CIF
Video Output 1 × HDMI (1080P), 1 × VGA (1080P) — simultaneous output
Audio 1 × RCA Audio Input, 1 × RCA Audio Output
Network 1 × RJ45 10/100 Mbps Ethernet — supports Hik-Connect, ISAPI, SADP
Hard Drive 1 × SATA — up to 4TB HDD (not included)
USB Ports 2 × USB 2.0 (mouse + USB backup)
Power Supply 12V DC / 2A (adapter included)
Operating Temperature −10°C to 55°C
Dimensions / Weight 200 × 200 × 48 mm / Approx. 1 kg
Remote Viewing App Hik-Connect (iOS & Android) — free
NOT Included Hard Disk Drive (HDD must be purchased separately)
🛡️
Hikvision Genuine Product — WeKart Assurance Sourced from Hikvision's authorised distribution network. Every unit is genuine, quality-checked before dispatch, and shipped with GST invoice. Hikvision operates one of India's largest CCTV service networks.
✅ Genuine Hikvision 🏭 Authorised Stock 🇮🇳 Pan-India Service 🧾 GST Invoice
Features & Technical Specifications
Brand Hikvision
Model Number DS-7104HGHI-K1
DVR Channels 4 (Analog) + up to 5 (IP) = up to 9 total cameras
Recording Resolution 1080P Lite @ 25fps, 720P @ 25fps, 960H, D1, CIF
Video Compression H.265+, H.265, H.264+, H.264
Supported Camera Types HDTVI, AHD, HDCVI, CVBS, IP (2MP)
Video Output 1 × HDMI (1080P max), 1 × VGA (1080P max)
Audio Input / Output 1 × RCA In / 1 × RCA Out
Network Interface 1 × RJ45 Ethernet 10/100 Mbps
Remote Access App Hik-Connect (iOS & Android — free)
Storage Interface 1 × SATA — max 4TB HDD capacity
Hard Disk Drive NOT INCLUDED — must be purchased separately
USB Ports 2 × USB 2.0
Motion Detection Smart Motion Detection 2.0 (human & vehicle)
Power Supply 12V DC / 2A
Operating Temperature −10°C to 55°C
Dimensions (LxWxH) 200 × 200 × 48 mm
Weight Approx. 1 kg (without HDD)
In the Box, Installation Guide & Who Should Buy

What's in the Box

  • 1 × Hikvision DS-7104HGHI-K1 4-Channel DVR Unit
  • 1 × 12V DC Power Adapter
  • 1 × USB Mouse
  • 1 × Quick Start Guide
  • Hard Disk Drive NOT included — must be purchased and installed separately
  • WeKart GST Invoice (included in shipment or emailed)
💡 HDD Recommendation: For 4-camera 1080P Lite 24/7 recording with H.265+ compression, a 2TB surveillance-grade HDD (Seagate SkyHawk or WD Purple) will give you approximately 30–45 days of continuous footage. Available separately on WeKart.

Basic Installation Steps

  1. Install a compatible SATA hard drive into the DVR chassis.
  2. Connect CCTV cameras to the 4 BNC input ports using coaxial cable.
  3. Connect HDMI or VGA cable to your monitor or TV.
  4. Connect power adapter and plug in USB mouse.
  5. Power on, complete the startup wizard, and format the hard drive.
  6. Download Hik-Connect app for smartphone remote viewing setup.

Compatible With

  • Hikvision TVI cameras (DS-2CE series — all models up to 1080P Lite)
  • Dahua HDCVI cameras and third-party AHD cameras up to 1080P
  • Legacy CVBS analog cameras from any brand
  • Hikvision and third-party IP cameras up to 2MP via network
  • Seagate SkyHawk, WD Purple, and Toshiba surveillance-grade HDDs (up to 4TB)
  • Any HDMI or VGA monitor / television for display

Suitable For

  • Home owners installing a 2–4 camera security system
  • Shop owners monitoring retail space and cash counters
  • Office managers setting up access point and parking surveillance
  • CCTV installation technicians and security system contractors
  • Apartment housing societies monitoring common areas
  • Warehouse and factory floor security monitoring
Important Notes, Buying Guide & FAQs
⚠️ Hard Drive NOT Included: This DVR is sold without a hard disk drive. You must purchase a compatible SATA surveillance-grade HDD (Seagate SkyHawk or WD Purple recommended, up to 4TB) and install it inside the DVR before recording can begin.
⚠️ IP Camera Expansion: The DVR supports a maximum of 5 IP camera channels but this replaces analog inputs — total simultaneous cameras are limited to the 4+1 hybrid configuration. Check the datasheet for the exact IP/analog trade-off ratio.
⚠️ Internet Required for Remote Viewing: Remote monitoring via Hik-Connect requires the DVR to be connected to a router with active internet service. Local recording works without internet.

Frequently Asked Questions

Q: Does this DVR come with a hard disk?
No. The hard drive must be purchased separately. Any surveillance-grade SATA HDD up to 4TB is compatible — Seagate SkyHawk and WD Purple are highly recommended.
Q: How many cameras can I connect to this DVR?
Up to 4 analog cameras (HDTVI, AHD, CVI, or CVBS) and up to 5 IP cameras simultaneously, for a maximum of 9 camera views total (with the hybrid configuration).
Q: What is H.265+ and why does it matter?
H.265+ is an advanced video compression codec that reduces storage usage by up to 75% compared to H.264. This means more days of recording history on the same hard drive capacity.
Q: Can I view cameras on my phone?
Yes. Download the free Hik-Connect app (iOS or Android), add your DVR using its serial number, and you can watch live cameras and review recordings from anywhere.
Q: Is this DVR compatible with non-Hikvision cameras?
Yes. It supports AHD, CVI, and CVBS cameras from any manufacturer, plus Hikvision-compatible IP cameras. It is one of the most camera-compatible DVRs in its class.
Q: What is Smart Motion Detection 2.0?
It uses deep learning AI to detect only human and vehicle movement — drastically reducing false alarms caused by lighting changes, animals, and vegetation that confuse traditional motion detection.
Q: Can this DVR work without internet?
Yes. The DVR records continuously to the hard drive without requiring internet. Internet is only needed for remote viewing via the Hik-Connect app.
Q: How many days of footage can it store?
With a 2TB HDD and H.265+ compression, approximately 30–45 days of continuous 4-camera 1080P Lite recording. Actual duration varies based on scene activity and recording resolution settings.
Q: Is this DVR suitable for outdoor camera systems?
The DVR itself is for indoor installation. You can connect outdoor cameras (weatherproof IP66-rated) to it using coaxial cables routed indoors.
Q: Does this DVR have audio recording?
Yes. It includes 1 RCA audio input and 1 RCA audio output. Audio recording requires a microphone or audio-capable camera connected to the audio input.
