D25 Pure Copper 3+1 CCTV Camera Coaxial Cable with BNC Video & Power Cord | Audio Video Signal Cable for Hikvision, DVR, Security Camera (5M – 180M)
D25 Pure Copper 3+1 CCTV Camera Coaxial Cable with BNC Video & Power Cord | Audio Video Signal Cable for Hikvision, DVR, Security Camera (5M – 180M)
In stock
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
- Order Processing & Shipping: 24–48 hours.
- Delivery Time: 1–7 business days (depending on location)
Return, Replacement & Warranty
Return, Replacement & Warranty
Every Product Is Backed By 1 To 2 Year Warranty
Contact
Contact
📧 Email — support@wekartonline.com
📦 Orders — orders@wekartonline.com
🛡️ Warranty — warranty@wekartonline.com
The D25 Pure Copper 3+1 CCTV Coaxial Cable delivers crystal-clear HD video, stable power supply, and reliable audio in a single cable run — compatible with Hikvision, DVR systems, dome cameras, and bullet cameras. Available in lengths from 5 Metres to 180 Metres with BNC video and power connectors included.

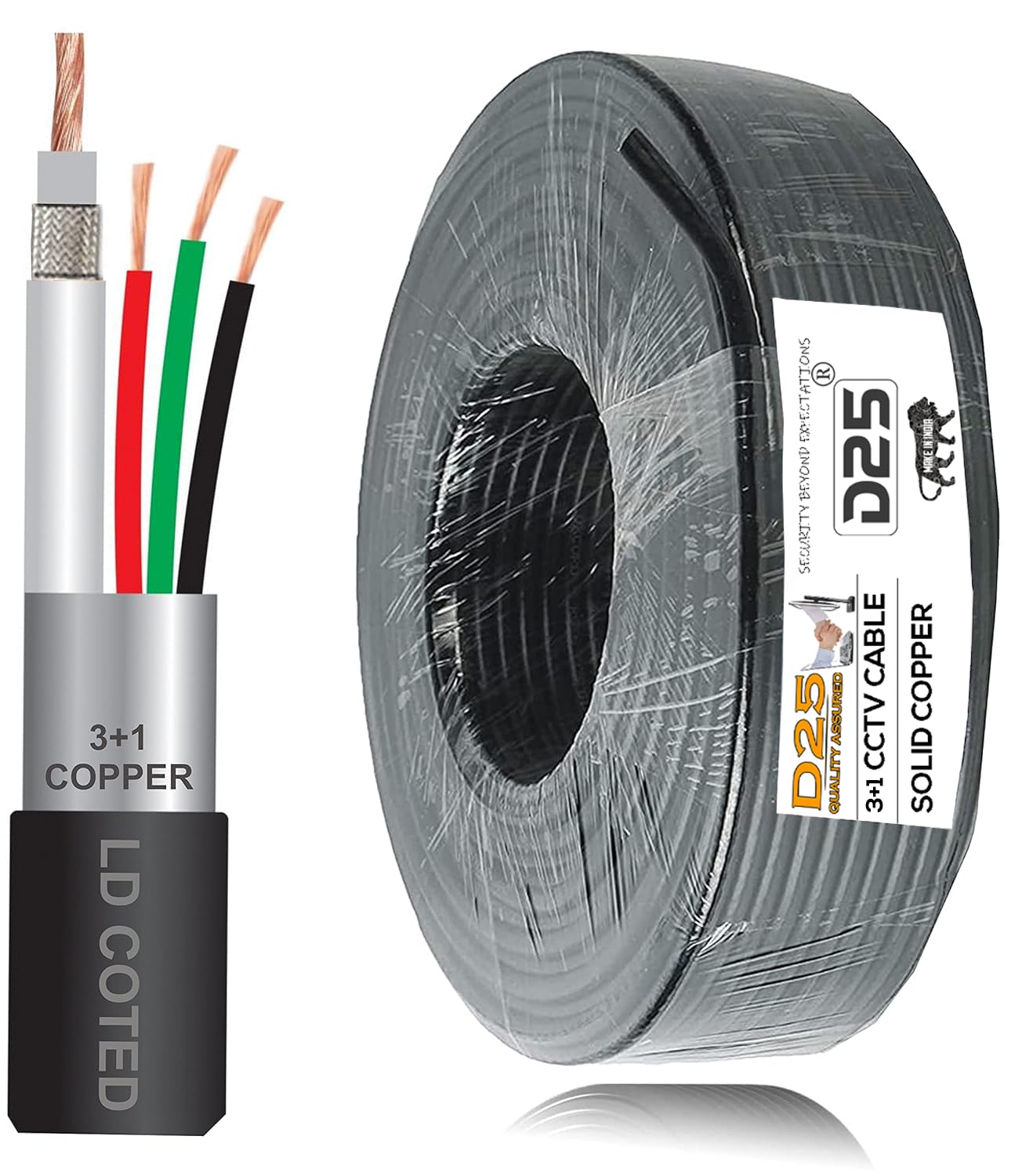

The D25 Pure Copper 3+1 CCTV Camera Coaxial Cable is engineered for professional-grade surveillance installations across India. Unlike cheaper CCA (Copper Clad Aluminium) cables, the D25 uses a 100% pure copper conductor that delivers maximum signal strength, minimal resistance, and consistent HD video quality — even over long cable runs up to 180 metres. Whether you're wiring a small home security system or a large commercial CCTV network, this cable ensures your cameras always perform at their best.
The 3+1 coaxial cable design is what sets this product apart. Instead of running separate cables for video, power, and audio, the D25 combines all three into a single, organised cable. The coaxial core carries the video signal, a twin-conductor pair handles DC power supply to the camera, and a third conductor transmits microphone audio — making your CCTV installation cleaner, faster, and far easier to manage behind walls and ceilings.

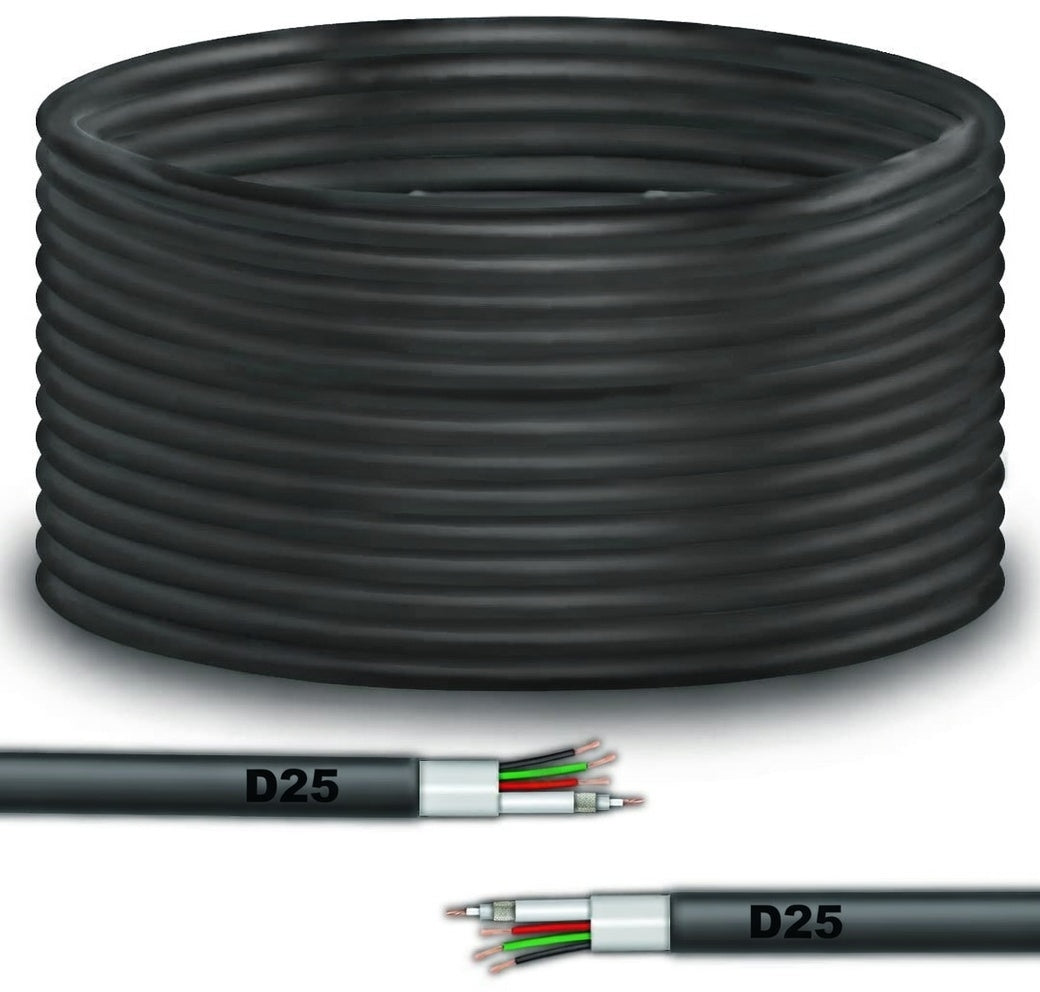

Signal interference is one of the biggest challenges in CCTV installations, especially in commercial and industrial environments. The D25 cable addresses this with braided alloy shielding that blocks electromagnetic and radio frequency interference (EMI/RFI), ensuring your surveillance footage remains sharp and noise-free at all times. The weatherproof PVC outer jacket adds an additional layer of protection against heat, moisture, sunlight, and mechanical damage — making it equally reliable for indoor and outdoor CCTV runs.

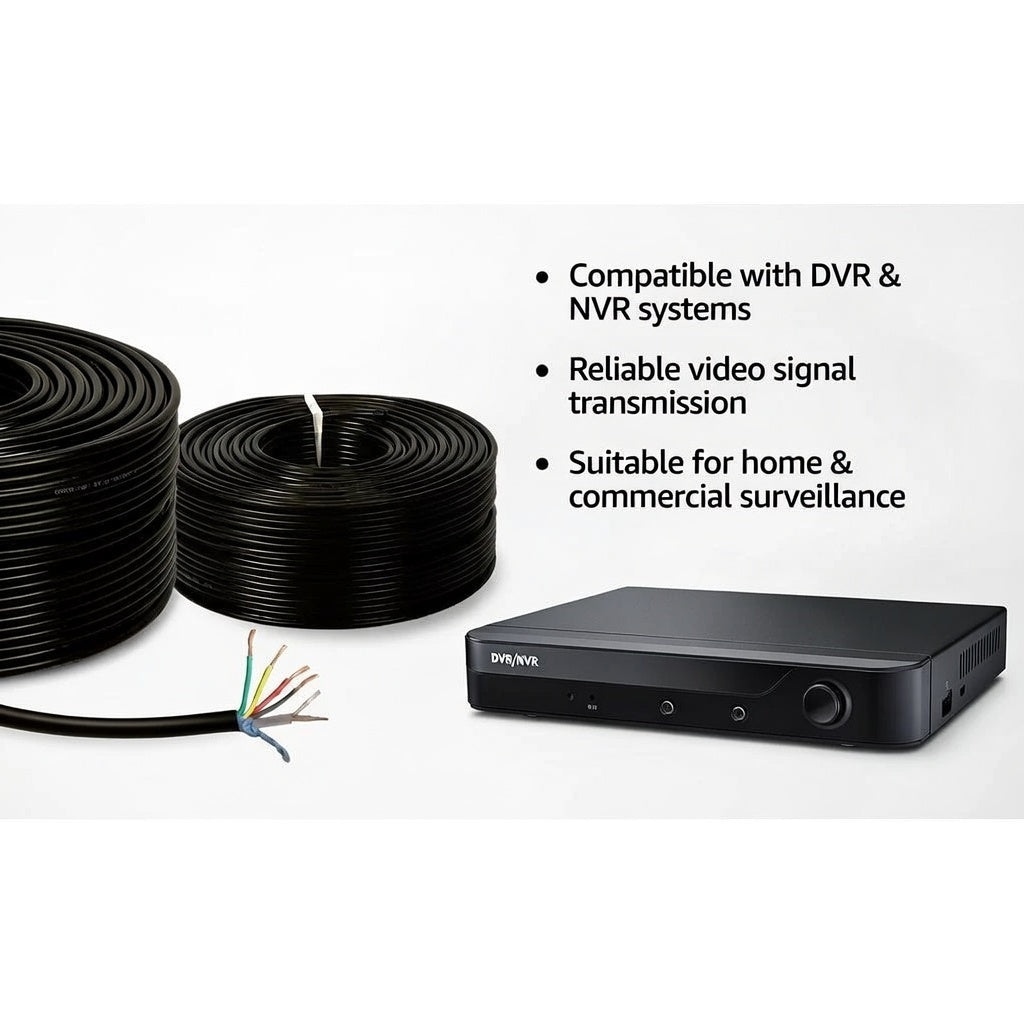

Compatibility is never a concern with the D25 CCTV cable. It works seamlessly with all major CCTV brands and systems available in India, including Hikvision, Dahua, CP Plus, Honeywell, Bosch, and all standard DVR/NVR systems. The pre-fitted BNC video connector and DC power cord make installation quick and straightforward — even for first-time CCTV installers. Simply connect, route, and your surveillance system is live.
With 11 length options from 5 metres to 180 metres, you can purchase exactly the cable length your project demands — reducing waste and keeping costs low. Sold by WeKart Online Store with a GST invoice, fast pan-India delivery, and genuine product guarantee, the D25 Pure Copper CCTV Cable is the most reliable choice for your next security camera installation.
| Parameter | Details |
|---|---|
| Compatible Brands | Hikvision Dahua CP Plus Honeywell Bosch All Standard DVR |
| Camera Types | Dome Camera, Bullet Camera, PTZ Camera, Box Camera |
| System Types | DVR Systems, NVR Systems, AHD, TVI, CVI, CVBS CCTV |
| Connector Type | BNC Video Connector + DC Power Connector |
| Installation Type | Indoor & Outdoor (Weatherproof) |
| Available Lengths | 5 M, 10 M, 20 M, 30 M, 40 M, 50 M, 60 M, 70 M, 80 M, 90 M, 180 M |
📋 Features & Technical Specifications
| Brand | D25 |
| Cable Type | 3+1 Coaxial CCTV Cable |
| Conductor Material | 100% Pure Copper |
| Shielding | Braided Alloy Shield (EMI/RFI Protection) |
| Outer Jacket | PVC — Weatherproof, UV Resistant |
| Connector — Video | BNC (Bayonet Neill–Concelman) |
| Connector — Power | DC Power Cord (Male + Female) |
| Cable Function | Video + Power + Audio (3-in-1) |
| Signal Type | Analogue HD — AHD, TVI, CVI, CVBS |
| Max Video Resolution | Up to 8MP / 4K (AHD) |
| Available Lengths | 5 M / 10 M / 20 M / 30 M / 40 M / 50 M / 60 M / 70 M / 80 M / 90 M / 180 M |
| Installation | Indoor & Outdoor |
| Compatible Systems | DVR, NVR, CCTV Security Systems |
| Country of Origin | India |
📦 Item Details — What's in the Box & Compatibility
What's in the Box:
- 1 × D25 Pure Copper 3+1 CCTV Coaxial Cable (Selected Length)
- BNC Video Connector (Pre-fitted)
- DC Power Connector — Male & Female (Pre-fitted)
Compatible With:
- Hikvision Dome & Bullet CCTV Cameras
- Dahua, CP Plus, Honeywell, Bosch Security Cameras
- All standard 4-channel, 8-channel, 16-channel DVR systems
- AHD, TVI, CVI, and CVBS analogue CCTV systems
- PTZ cameras and box cameras with BNC input
Ideal Installation Locations:
- Home boundary walls, gates, and entry points
- Shop fronts, retail interiors, trial rooms
- Office corridors, reception areas, server rooms
- Warehouse aisles, factory floors, loading bays
- Parking lots, basements, open outdoor areas
- Schools, hospitals, and government buildings
🔧 Quick Installation Guide
Follow these steps for a clean and reliable CCTV cable installation:
- Plan your cable route from each camera position to the DVR location. Measure the distance to select the correct cable length.
- Route the D25 3+1 cable through walls, conduit, or cable trays as required for your installation.
- Connect the BNC video connector to the video output port on your CCTV camera.
- Connect the DC power connector (female) to your camera's power input port.
- At the DVR end, connect the BNC connector to the DVR's video input channel.
- Connect the DC power connector (male) to your CCTV power supply unit or splitter.
- Power on the DVR and check the live feed — the camera should display immediately.
- If audio is required, connect the audio wire from the 3+1 cable to the DVR's audio input.
❓ Frequently Asked Questions (FAQ)
ℹ️ Important Notes, Warnings & Who Should Buy
Who Should Buy This Cable?
- Homeowners installing a DIY CCTV security system for the first time.
- CCTV installers & electricians needing reliable pure copper cable for professional projects.
- Business owners setting up or upgrading shop, office, or warehouse surveillance.
- IT & security system integrators requiring bulk cable for large-scale installations.
- Anyone replacing old CCA or damaged CCTV cables with a superior pure copper alternative.
Important Notes & Warnings:
