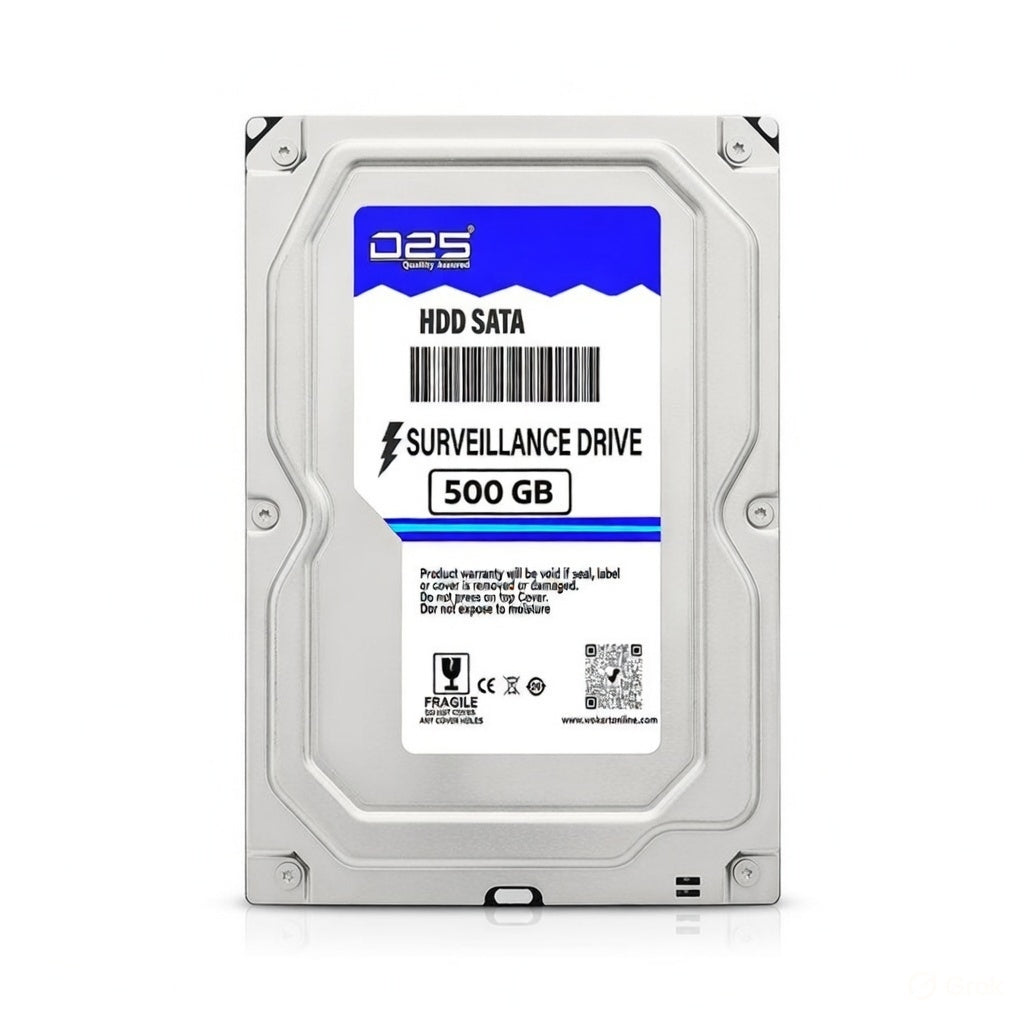

• 1 × D25 500GB 3.5 Inch SATA Internal Hard Disk
• Warranty Card with 2-Year Carry-In Replacement Warranty
• Anti-Static Protective Packaging
• WeKart Online Store Purchase Invoice (GST included)

⚠️ SATA data cable, power cable, and mounting screws are NOT included — use components from your DVR/NVR or desktop computer.

• All CCTV DVR recorders with 3.5 inch SATA hard disk bay
• All NVR recorders with 3.5 inch SATA storage support
• Hikvision DVR & NVR (all standard SATA models)
• CP Plus DVR & NVR (all standard SATA models)
• Dahua DVR & NVR (all standard SATA models)
• TP-Link VIGI NVR series
• UNV / Uniview DVR & NVR
• Zicom, Godrej, Secureye, Qubo, TVT, Sparsh DVR/NVR
• Desktop computers (all mid-tower and full-tower cases)
• All-in-One PCs with 3.5 inch internal drive bay
• NAS enclosures supporting 3.5 inch SATA hard disks

• Home CCTV security recording systems
• Office and corporate CCTV surveillance
• Retail shop and showroom surveillance
• Warehouse and logistics area monitoring
• Factory and industrial security
• Apartment and housing society surveillance
• School, college, and hospital CCTV systems
• Parking area and perimeter monitoring
• Desktop PC primary or secondary storage
• NAS storage expansion for home or office
• Data backup storage drive for documents and files
• DVR or NVR storage upgrade or replacement

• Home owners installing or upgrading a CCTV security system
• Shop and retail store owners who need reliable surveillance storage
• IT administrators managing office security or server storage
• CCTV installers and security system technicians
• Desktop PC users needing additional internal storage
• NAS users expanding shared storage capacity
• Anyone whose DVR or NVR hard disk has failed and needs a replacement
• Users upgrading a slow or small capacity desktop hard disk
• Apartment, school, and hospital security administrators
• Anyone looking for a versatile, affordable SATA internal HDD in India

Follow these steps to safely install the D25 500GB hard disk into your CCTV DVR or NVR unit.

1. 1
   Power off the DVR/NVR completely — switch off the unit and disconnect the power adapter from the wall socket. Never install a hard disk with the device powered on.
2. 2
   Open the DVR/NVR casing — unscrew the top or side panel using a Phillips screwdriver. Place the screws safely aside.
3. 3
   Locate the hard disk bay — find the SATA connector slots and hard disk mounting tray or bracket inside the unit.
4. 4
   Mount the hard disk — place the D25 500GB drive into the tray with screw holes aligned, then secure it firmly with the mounting screws.
5. 5
   Connect the SATA data cable — plug one end into the hard disk SATA data port and the other end into the SATA port on the DVR/NVR mainboard.
6. 6
   Connect the SATA power cable — attach the SATA power connector from the DVR/NVR power supply to the power port on the hard disk.
7. 7
   Close the casing — reattach the panel and tighten all screws securely.
8. 8
   Power on the DVR/NVR — the unit will detect the new hard disk automatically on startup.
9. 9
   Format via DVR/NVR menu — go to Storage Settings → HDD Management → Format. This step is mandatory before recording begins. Formatting erases all existing data on the drive.
10. 10
    Recording begins automatically — once formatted, the DVR/NVR will start recording as per your configured schedule and settings.

Install the D25 500GB hard disk as primary or secondary storage in your desktop PC following these steps.

1. 1
   Shut down the computer and disconnect from power — fully power off and unplug the power cable from the back of the PC case.
2. 2
   Open the PC cabinet — remove the side panel by unscrewing the thumb screws or panel screws at the rear of the case.
3. 3
   Find an available 3.5 inch drive bay — locate an empty drive bay inside the cabinet. Most mid-tower and full-tower cases have 2–4 available 3.5 inch bays.
4. 4
   Slide in and secure the hard disk — insert the D25 drive into the bay with the SATA ports facing inward. Secure it with screws on both sides of the drive.
5. 5
   Connect the SATA data cable — plug one end into the hard disk and connect the other end to an available SATA port on the motherboard.
6. 6
   Connect the SATA power cable — attach a SATA power connector from the PSU (power supply unit) to the power port on the hard disk.
7. 7
   Close the cabinet and reconnect power — reattach the side panel, plug in the power cable, and switch on the computer.
8. 8
   Initialise in Windows Disk Management — right-click the Start button → select Disk Management. The new drive will appear as unallocated. Right-click → Initialise Disk → choose MBR or GPT → create a New Simple Volume and format as NTFS.
9. 9
   Assign a drive letter — during volume creation, assign a letter (e.g. D: or E:). The drive is now ready to use as additional storage in Windows.

• This is an internal hard disk — requires installation inside a DVR, NVR, NAS, or desktop computer.
• Not an external USB portable hard disk — no USB connectivity.
• Always format from DVR/NVR menu before first use in surveillance systems.
• Actual usable storage is slightly less than 500GB due to formatting overhead.
• Uses SATA interface only — not compatible with older IDE/PATA connectors.
• Handle carefully — avoid drops, strong vibrations, magnetic fields, and moisture.
• Not recommended as a primary OS drive for desktop computers.
• SATA data cable, power cable, and mounting screws are not included in the box.
• Designed for temperatures within standard indoor operating environments.
