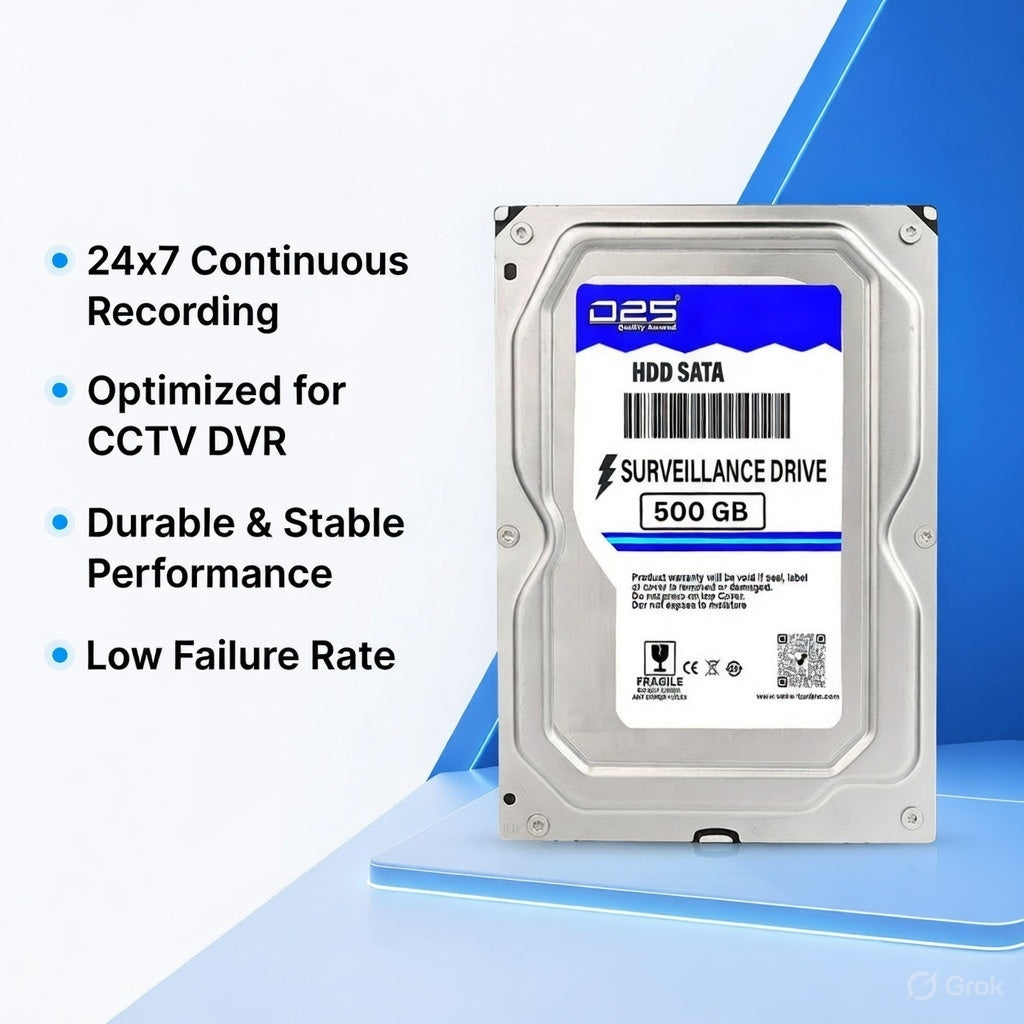

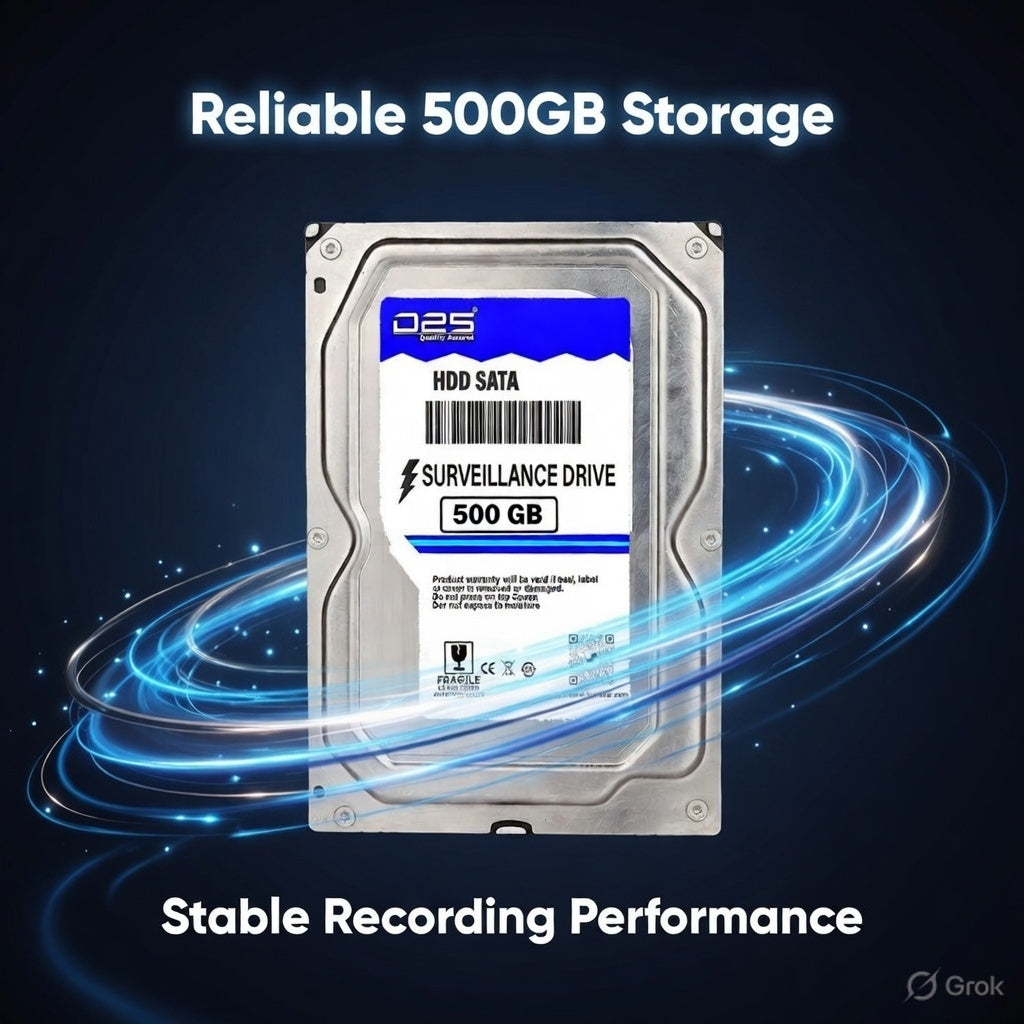

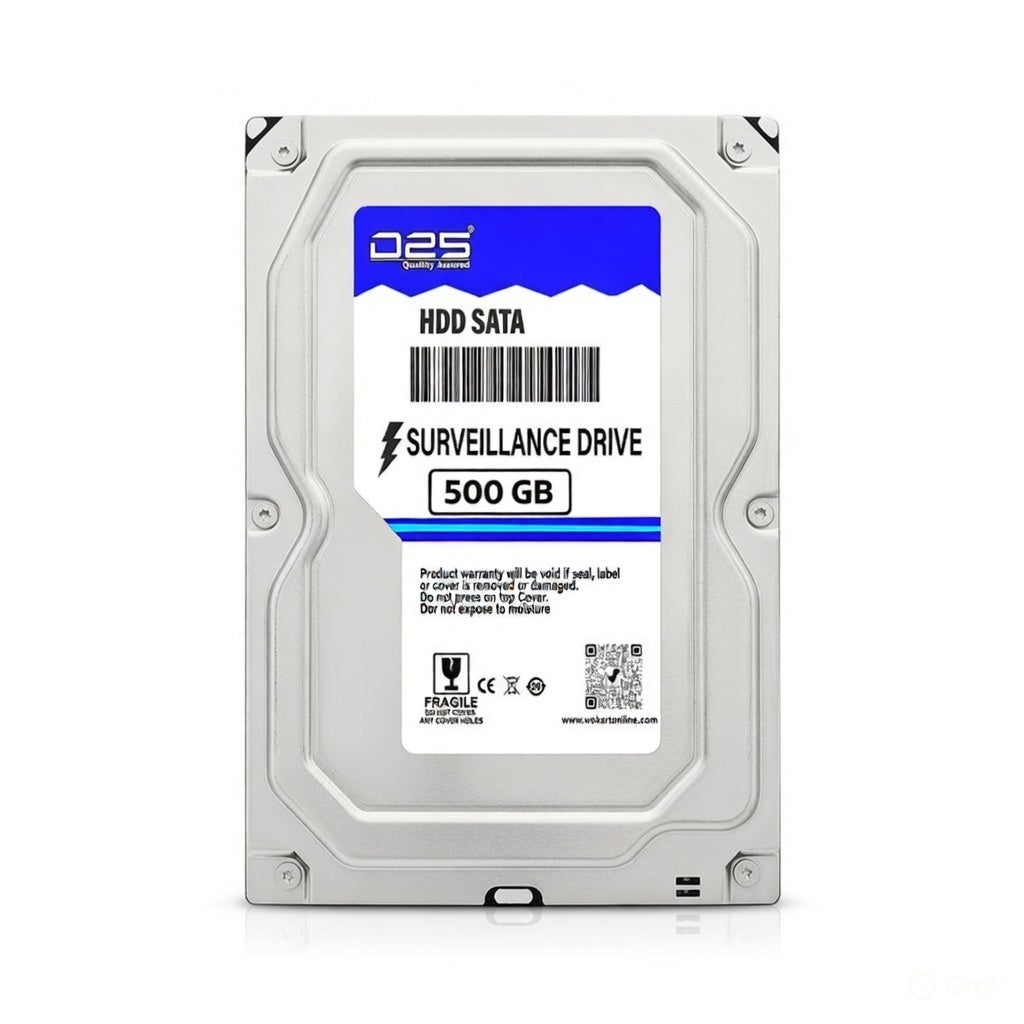

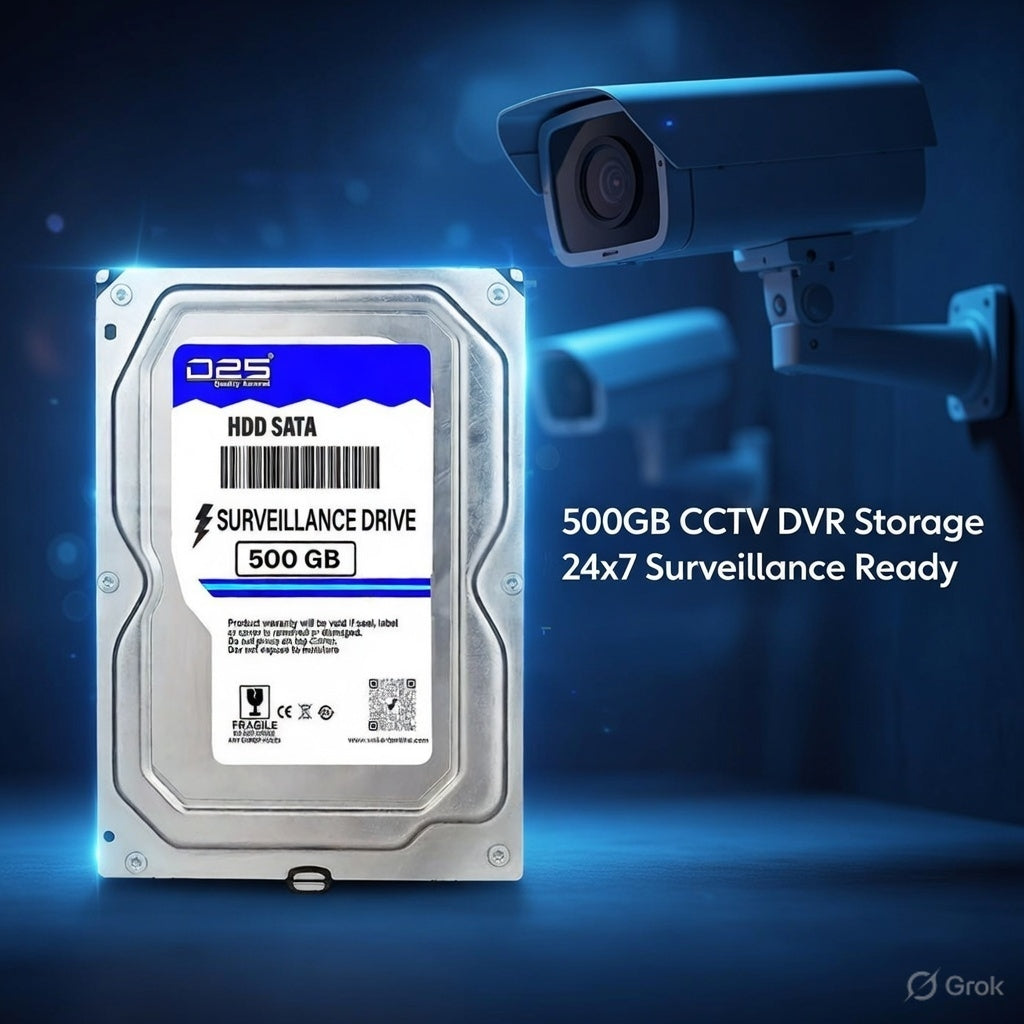

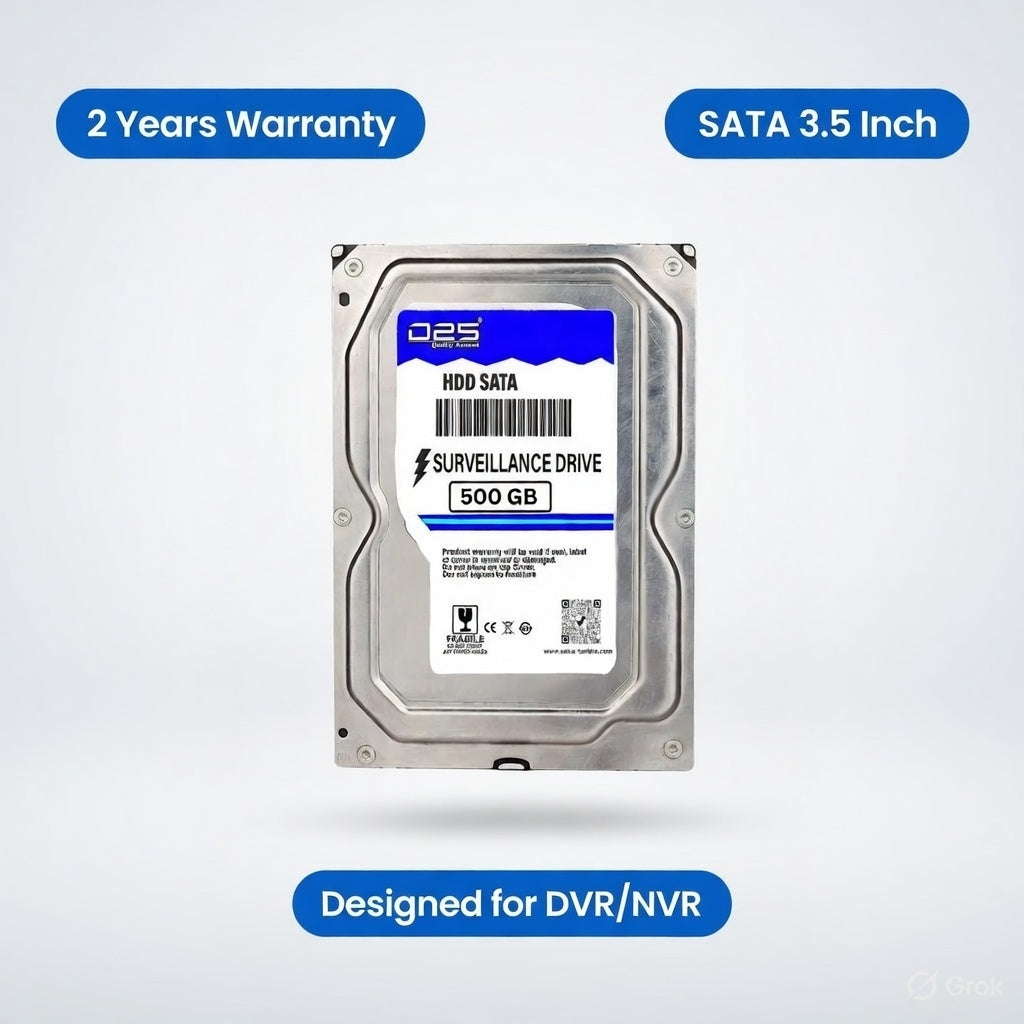

D25 500GB Internal CCTV Surveillance Hard Disk for DVR & NVR | 24x7 Recording | Compatible with Hikvision, CP Plus, Dahua | 2 Year Carry-In Replacement Warranty


• 1 × D25 500GB CCTV Surveillance Hard Disk (Internal)

• Warranty Card with 2-Year Carry-In Replacement Warranty

• Protective Anti-Static Packaging

• WeKart Online Store Purchase Invoice (GST included)


⚠️ SATA data cable and power cable are NOT included — use cables from your DVR/NVR unit.


• Hikvision DVR and NVR (all standard SATA models)

• CP Plus DVR and NVR (all standard SATA models)

• Dahua DVR and NVR (all standard SATA models)

• TP-Link VIGI NVR systems

• UNV / Uniview DVR and NVR

• Zicom DVR and NVR recorders

• Godrej Security DVR and NVR systems

• Secureye DVR and NVR recorders

• Qubo Smart CCTV NVR

• TVT DVR and NVR series

• Sparsh CCTV DVR and NVR systems

• All SATA-interface DVR/NVR recorders (4-channel, 8-channel, 16-channel)

• Standard desktop computers (secondary use)



• Home CCTV security recording systems

• Office and corporate surveillance

• Retail shop and showroom CCTV

• Warehouse and logistics monitoring

• Factory and industrial security

• Apartment building surveillance

• Parking area monitoring systems

• School and college CCTV systems

• Hospital and clinic security cameras

• DVR or NVR storage upgrade

• Multi-camera CCTV installations (4-channel, 8-channel)


Follow these steps to safely install the D25 500GB surveillance hard disk into your CCTV DVR or NVR unit.


1. 1
   Power off your DVR/NVR completely — switch off the unit and disconnect the power adapter from the wall socket. Never install a hard disk while the device is powered on.

2. 2
   Open the DVR/NVR casing — unscrew the top or side panel of the DVR/NVR unit using a Phillips screwdriver. Keep the screws in a safe place.

3. 3
   Locate the hard disk bay — look for the SATA connector slots inside the unit. Most DVRs have a dedicated HDD tray or mounting brackets.

4. 4
   Mount the hard disk — place the D25 500GB hard disk into the HDD tray or bracket. Align the screw holes and secure the hard disk firmly using the provided screws or DVR tray screws.

5. 5
   Connect SATA data cable — plug one end of the SATA data cable into the hard disk SATA port and the other end into the SATA port on the DVR/NVR mainboard.

6. 6
   Connect SATA power cable — connect the SATA power connector from the DVR power supply to the power port on the hard disk.

7. 7
   Close the casing — reattach the panel and tighten the screws securely.

8. 8
   Power on the DVR/NVR — switch on the unit. The DVR/NVR will detect the new hard disk automatically.

9. 9
   Format the hard disk from DVR/NVR menu — go to Storage Settings → HDD Management → Format in your DVR/NVR interface. This step is mandatory before recording can begin. Formatting will erase any existing data.

10. 10
    Start recording — once formatting is complete, your DVR/NVR will begin recording automatically as per your configured settings.


Although this drive is optimised for surveillance use, it can also be installed as a secondary storage drive in a desktop PC.


1. 1
   Shut down your computer and unplug from power — press the power button to shut down fully, then disconnect the power cable from the back of the PC.

2. 2
   Open the computer cabinet — remove the side panel of your desktop PC case by unscrewing the thumb screws or panel screws at the rear.

3. 3
   Locate an available 3.5-inch drive bay — find an empty drive bay inside the cabinet. Most mid-tower and full-tower cases have 2–4 available bays.

4. 4
   Slide in and secure the hard disk — insert the D25 500GB hard disk into the 3.5-inch drive bay with the SATA ports facing inward. Secure it with screws on both sides.

5. 5
   Connect the SATA data cable — connect one end of a SATA data cable to the hard disk and the other end to an available SATA port on your motherboard.

6. 6
   Connect the SATA power cable — plug a SATA power connector from your PSU (power supply unit) into the hard disk power port.

7. 7
   Close the cabinet and reconnect power — reattach the side panel, plug in the power cable, and power on your computer.

8. 8
   Initialise the disk in Windows — open Disk Management (right-click Start → Disk Management). The new drive will appear as unallocated. Right-click → Initialise Disk, choose MBR or GPT, then create a new simple volume and format as NTFS.

9. 9
   Assign a drive letter — during volume creation, assign a drive letter (e.g. D: or E:). The hard disk is now ready to use as additional storage.



• This is an internal hard disk — it requires installation inside a DVR, NVR, or desktop computer.

• Not an external portable hard disk — no USB connection is supported.

• Always format the hard disk from the DVR/NVR menu before first use.

• Actual storage available may be slightly less than 500GB due to formatting overhead.

• Designed primarily for surveillance recording; secondary use in desktop PC is supported.

• Handle carefully — avoid drops, strong vibrations, and magnetic fields.

• Not suitable for use as a primary OS drive in computers.

• Keep away from moisture and extreme heat environments.

• Compatible with SATA interface only — not compatible with IDE connectors.



• Home owners installing or upgrading a CCTV security system

• Shop and retail store owners needing surveillance storage

• IT administrators managing office or commercial security systems

• CCTV installers and security system technicians

• Warehouse and factory managers setting up monitoring systems

• Anyone whose existing DVR/NVR hard disk has failed and needs a replacement

• Users expanding storage in existing 4-channel or 8-channel CCTV systems

• Apartment and housing society security managers

• School, college, and hospital security administrators

• Anyone looking for an affordable, reliable CCTV storage upgrade in India
